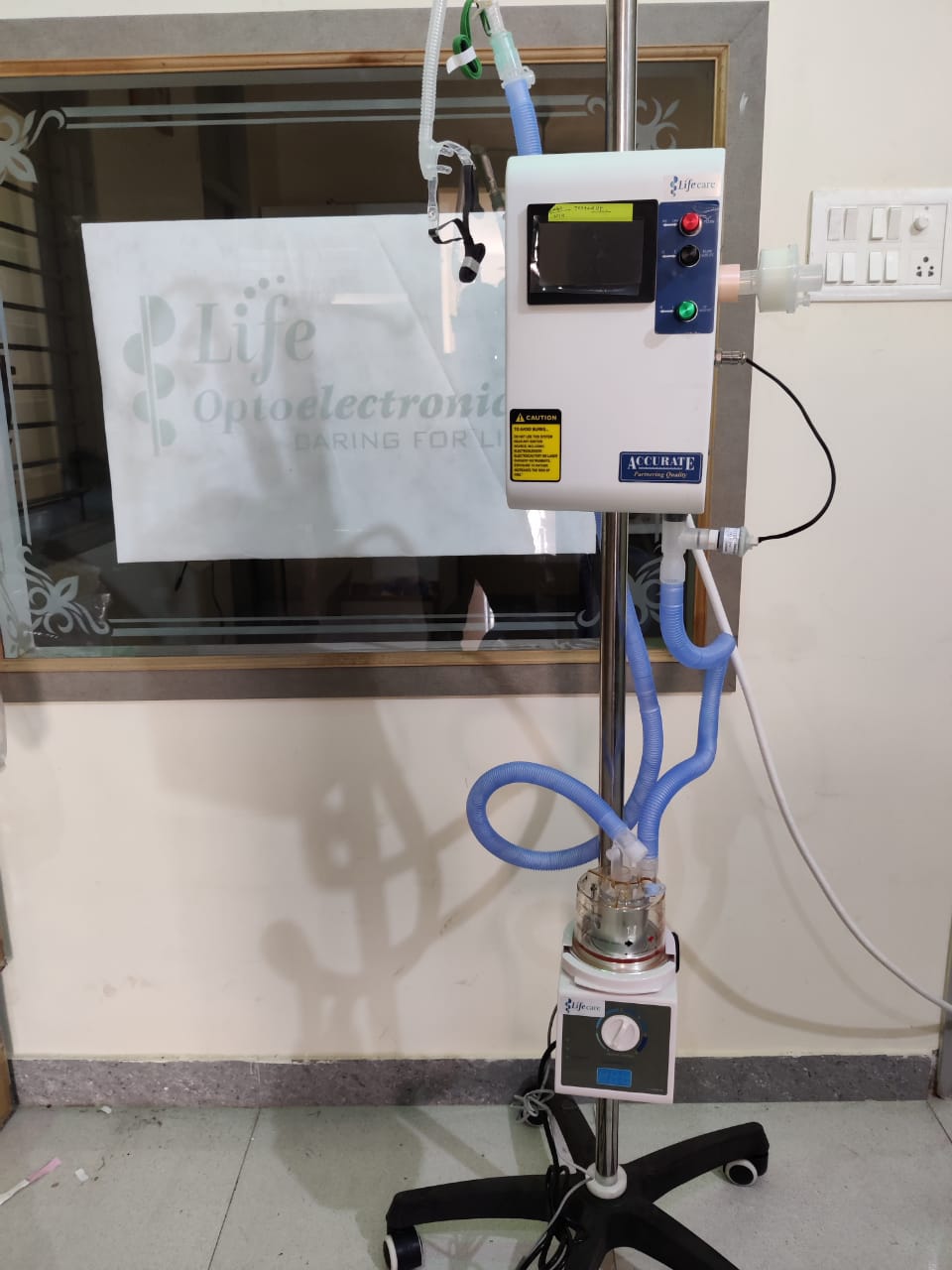

The LF-100 System delivers continuous positive airway pressure (CPAP) throughout the breathing cycle. It provides CPAP at present levels throughout inspiration and exhalation, independent of the patient’s flow rate.
The primary function of the LF-100 is to deliver a mixed gas of oxygen and air through a heated humidifier system to a patient.
High flow oxygen therapy device is a precision venturi based device that uses an oxygen supply in conjunction with entrained air to generate
an output flow. System uses 4 bar input oxygen supply, and can generate flows over 100 L/min which are placed within the circuit, are
used to maintain preset positive airway at flow rates from 2 to 100L/min.
This is a noninvasive system containing any of the High flow nasal cannula, twin port face mask or Hood as accessories.

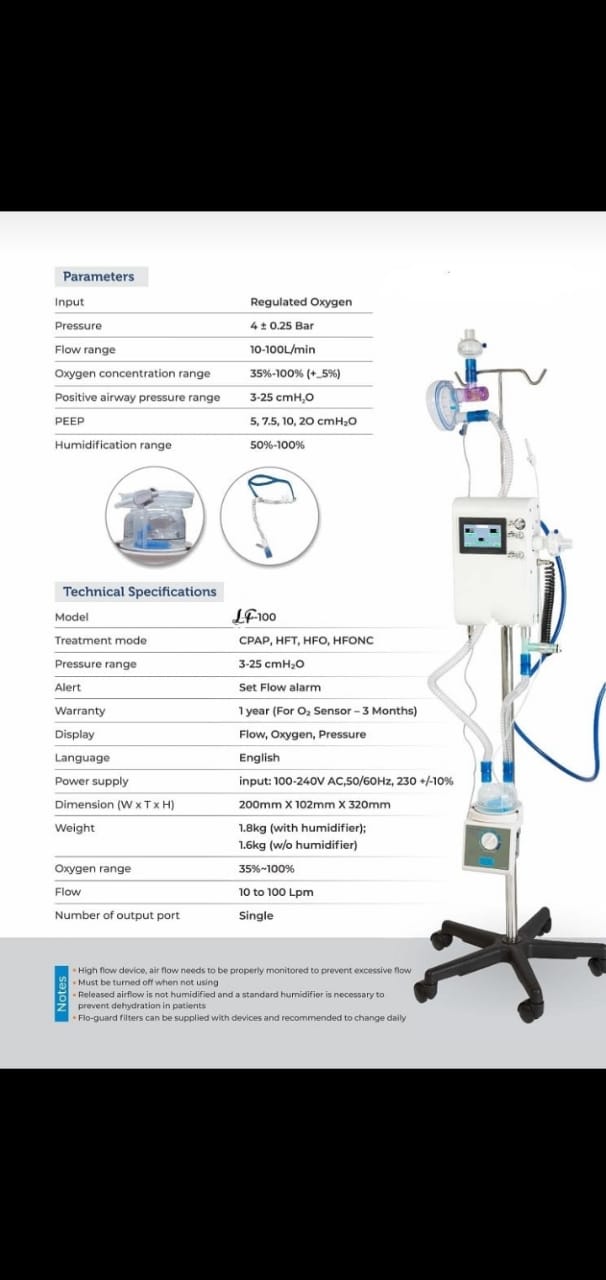

| Model | LF-100 |
| Treatment mode | CPAP, H FT, HFO, HFONC |
| Pressure range | 3-25 cmH20 |
| Alert | Set Flow alarm |
| Warranty | 1 year (For 02 Sensor - 3 Months) |
| Display | Flow, Oxygen, Pressure |
| Language | English |
| Power supply | input:100-240V AC,50/60Hz, 230 +/-10% |
| Dimension (W x Tx H) | 200mm X 102mm X 320mm |
| Weight | 1.8kg (with humidifier); 1.6kg (w/o humidifier) |
| Oxygen range | 35%-100% |
| Flow | 10 to 100 Lpm |
| Number of output port | Single |
